Ceiling Isolated Hanger

Product Introduction
NOISESTOP® CB-RR-50 is a space saving isolated ceiling hanger made from high quality metal parts and high damping elastomer pad.
CB-RR-50 are specifically designed for dry type ceiling of gypsum board in wire supported or suspended systems to decouple the structural noise transmission.

Application

Bedroom
Home theatre
Conference Room
Multipurpose Hall
Recording Studio
Office, etc.

Features

Low Cost
Easy to Install.
Resistance to Corrosion
Smallest installation space
Tighten lock design to prevent the vibration between isolator and channel

Acoustic Performance

Item	Test Standard	Test Result
STC	ASTM E90-09	69
IIC	ASTM E492-09	60
Rw	BS EN ISO 140-3:1998	68 dB
Lnw	BS EN ISO 140-6:1998	46 dB

Test data of STC=69

Product	Impact Sound Pressure Level (dB)
Product	250 Hz	500 Hz	1k Hz	2k Hz	4k Hz
CB-RR-50 (50mm cavity)	54	68	72	74	79

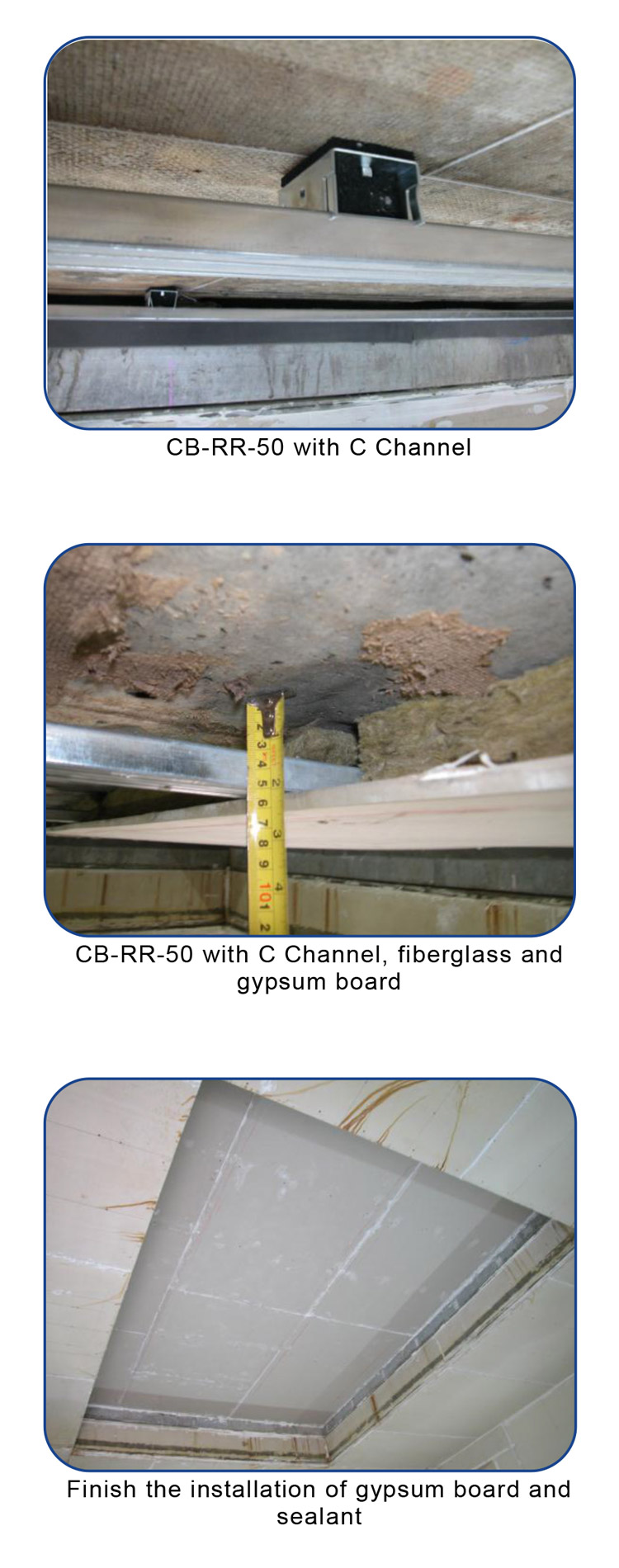

Suggested Layout

Product	Suggest centre to centre distance
CB-RR-50	600x800mm, 600x1000mm

Product Specification

Model	Size	Colour
CB-RR-50	40x54x40mm	Silver
